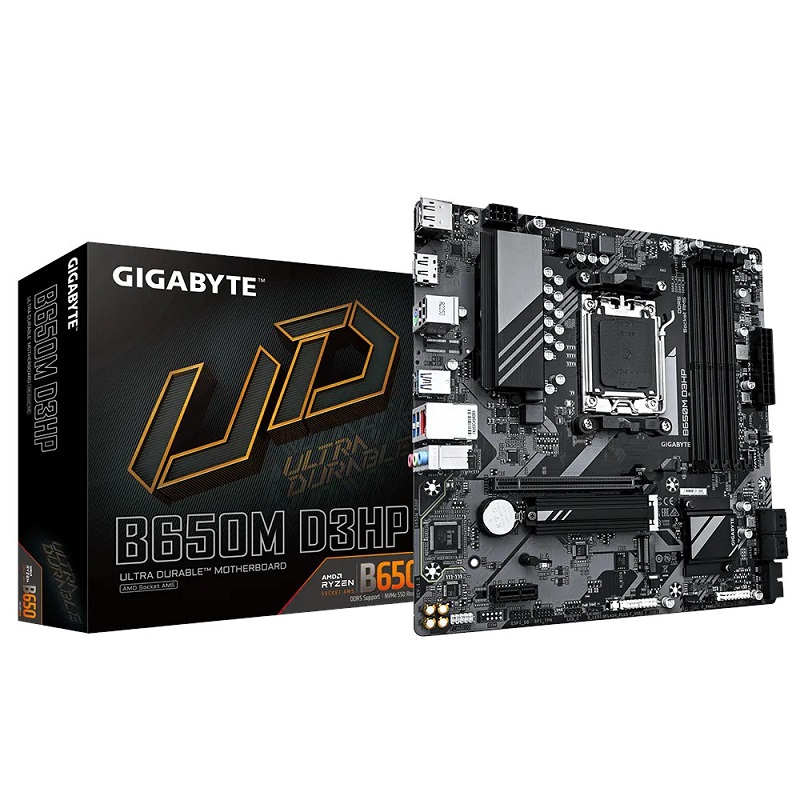

Gigabyte B650M D3HP rev. 1.x

Procesorsko ležište (socket): AMD® AM5
Čipset: AMD® B650
Tip memorije: DDR5
Memorijski slotovi: 4x DDR5
Podržane memorije: do 7600(O.C)
Maksimalna ukupna memorija: 192GB
4x SATA 6Gb/s
RAID 0 1 10
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
– AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Realtek 7.1 Surround Sound High Definition Audio CODEC
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
Format: micro ATX Form Factor
